Product Description

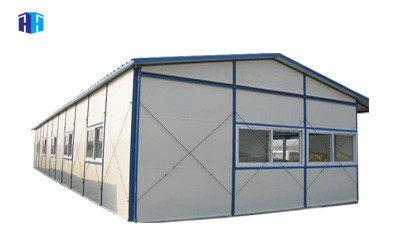

low cost prefabricated movable camp house and wall panels design in nepal
1. Main Material of Prefab Houses:
a. The roof and wall is sandwich panel. However, there are other materials you can choose, such as the Rock wool sandwich panel, Polyurethane sandwich panel, PU foam sandwich panel.
b. The frame is the C section steel and the Angle iron. The thickness is depending on you!
2. More details of Prefab Houses:
1) Structure: light steel as its main frame, which is safe and reliable; sandwich panels as its roof and wall boards, which is in equisite looks and beautiful decoration.
2) Environmental protection and economized: prefab houses are reasonable in design, can be removed or recycled more than 5 times, and it can service 10 years or longer.
3) Applications: prefab houses can be used as permanent & temporary residence, laborers accommodation, office, workshop, warehouse, etc.
4) Advantages: High performance in quakeproof, waterproof, windproof, moisture proof, heat insulation and sound insulation.
5) Inside facilities: Floorings, ceiling, water system, electrics, toilets, etc. are optional for clients' choice.
6) Quick installation: It is convenient to install, a skilled worker can install 20sqm-30sqm one day.
7) Transportation: The completely knock-down of prefab house components can save more space of the sea container and make the freight cost of house much lower.
3. Specifications for the Prefabricated Houses:
| Specifications for the Prefabricatd Houses |
| Components | Materials |
| Ground Beam | 8# C steel |
| Pillar | Double 8# C steel |
| Ring Beam | 8# C steel |
| Floor Purlin | 8# C steel |
| “A” Shape Beam | 8# C steel |
| Roof Purlin | L40 angle steel |
| Stair | Steel stair |
| Aisle Board | 3mm corrugated steel board |
| Wall Board | 50mm-200mm EPS (PU, MGO, RW)sandwich panel |
| Roof Board | 50mm-200mm EPS (PU, MGO, RW)sandwich panel |
| Floor Board | 15mm plywood board |
| Window | PVC sliding window/Aluminum alloy window |
| Door | Sandwich door with aluminum frame/security door/PVC door |
| Ceilings | Gypsum board/Aluminum board |
| Water Pipes & upping port Electrics | Based on standards in local place |
| Color | Sky blue/brick red/greyish white/others colors as per customers' request |
| Supporting Facilities | Toilets, wash basin, air-condition, socket, switch and others as per customers' request |
4. Other Points:
a. Prefab houses can be used in building site, low cost, easy installation, reusable, energy conservation.
b. Used in building site and can be reused in lots of projects, which is very economical.
c. Prefab houses can be designed as accommodation, office, control center, canteen and so on.
d. The low-cost, easy assemble and disassemble, reusable are the most outstanding advantages of this house.
e. We can design the style according to your different requirements and the building site weathers. It's fireproof, waterproof, quakeproof and heatproof.
f. The partition of the wall is depend on you, we can design what partition you want.
g. Excellent in the feature of typhoon and earthquake proofing grade is 8 grades, and the earthquake proofing grade is 7 grades.
h. The using life is around 10-15 years. Environmental protection and economical.
I. Each worker can assemble 20~30 square meters every day. 6 workers can finish 300sqm prefab house in 2 days.
j. Loading: 320 square meters can be loaded in one 40 feet shipping container.
5. For client’s information:
It will be very much helpful if clients can provide the following information:
a. Design drawing or layout plan if you have.
b. The dimension: length, width, height, windows and doors dimensions, etc.
c. The function of building, and if need, the interior equipment etc.
d. The class of building: one, two or three story.
e. Special requirement on function: such as water system, electricity installation, or other requirements etc.
Our Service
1. Professional design and engineering team: Full solution for steel structure design.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, and you just need to prepare a team which know normal construction works will be O.K.
Packaging&Shipping
Delivery by 40'HQ shipping container by bulk packing in general.
FAQ
1.Q: How to buy container house?
A: You can provide us your drawing, and we will produce as your drawings.
2.Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
3.Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.
4.Q: How to ship container house?
A: Loading by sea shipping container.
5.Q: How to install after the container house arriving destination?
A: We will provide detailed illustration photos and videos to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be borne by buyers.
6. Q: What are the advantages of your panel?
A: Our panel's outstanding advantages are light weight, heat insulation/proof, waterproof, fireproof, sound insulation, fast construction and so on.
7. Q: Is the panel fire rated, if so, what is the rating?
A: Theoretically, it can endure the fire for 4 hours in the heat of 1000°C. But in fact, it is incombustible.
8. Q: Do you have any certificate to help us get government's approval?
A: We can provide our ISO certificate, test reports, SGS certificates as your support documents. Since the building standards are different in various countries, most of our customers buy the panels for test and get approval by themselves.
9. Q: I need samples for customer approval, will this be possible?
A: We can provide samples at your required size, but we will not afford the cost of delivery.
|
|
